Pick up any water bottle and you’ll likely focus on the vessel itself — its shape, its capacity, whether it keeps your coffee hot. But the lid? It barely gets a second glance.

Yet the lid is arguably the most mechanically complex part of the entire product. It needs to seal reliably under pressure, click open with satisfying precision, and survive being dropped, twisted, and tossed into bags thousands of times over. Getting that right is no accident. It is the result of a carefully orchestrated water bottle manufacturing process — one where every step feeds directly into the next, like links in a well-forged chain.

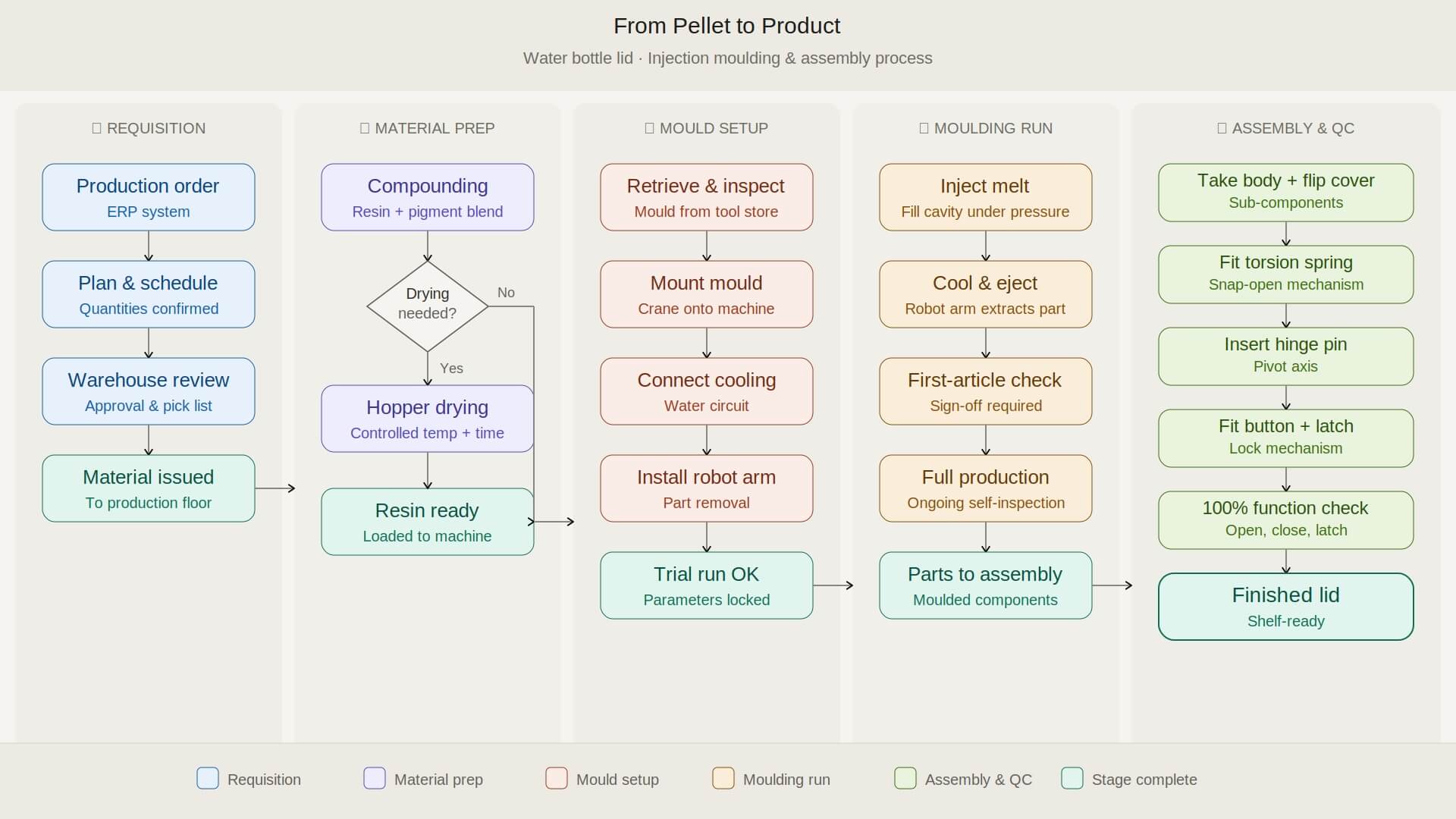

Today, I am going to walk you through the full production journey of an injection-moulded water bottle lid: from raw resin pellets all the way to a finished, inspected component. That’s how exactly Haers make a bottle lid.

It All Starts with a Plan: Material Requisition

Before a single gram of plastic is melted, the production line begins with paperwork — or more precisely, with a digital production order issued through an enterprise resource planning (ERP) system.

Think of this stage as the conductor tapping his baton before the orchestra plays. Nothing moves until the score is in hand. The production order triggers a requisition process: the exact materials needed for the run are identified, quantities are calculated, and a formal pick list is generated in the system. Only after a warehouse review and approval does the physical material get released from storage and moved to the production floor.

This systematic approach ensures traceability — every batch of material can be linked back to a specific production run. If a quality issue surfaces downstream, the trail leads straight back to the source.

Preparing the Raw Material: Compounding and Drying

Plastic resins don’t always arrive ready to use straight off the shelf. Depending on the product specifications — particularly colour requirements — the base resin may need to be blended with colourants or additives in a dedicated compounding room.

Modern facilities handle this with automated mixing and dosing equipment. Picture a precise kitchen scale, but instead of flour and sugar, it’s measuring master batches of pigment and resin pellets by the kilogram. The result is a homogeneous blend that will produce consistent colour across every single part in the run.

One critical step that is easy to underestimate is drying. Many engineering-grade resins are hygroscopic — they absorb moisture from the ambient air like a sponge. If wet resin is fed directly into an injection moulding machine, the trapped moisture turns to steam under heat and pressure, creating micro-voids, surface splay, or structural weaknesses in the finished part. Not visible to the naked eye, but catastrophic for performance.

When drying is required, the resin is loaded into a hopper dryer and held at a controlled temperature for a set dwell time — long enough to drive out moisture, but not so long that the polymer begins to degrade. When drying is not required (some resins are naturally moisture-resistant), the material moves directly to the machine hopper. Either way, the decision is made deliberately, not by assumption.

Mould Setup and Machine Commissioning

If material preparation is the warm-up act, then mould commissioning is where the real performance begins.

An injection mould for a water bottle lid is a precision-engineered steel tool — often worth tens of thousands of dollars — machined to tolerances measured in hundredths of a millimetre. Setting it up correctly is not a casual affair. The mould is retrieved from the tool store, inspected, and craned onto the injection moulding machine with mechanical precision. The analogy here is fitting: it’s like mounting a custom lens onto a camera body. The fit must be perfect, or everything that follows will be out of focus.

Once mounted, the mould is connected to a cooling water circuit. Injection moulding generates enormous heat. Without active cooling, the mould — and the parts inside it — would never solidify properly. The cooling channels running through the steel tool act like the circulatory system of the process: constantly removing heat, cycle after cycle, keeping conditions stable.

For higher-volume production, robotic part removal arms (commonly called mechanical hands or end-of-arm tooling) are installed and calibrated. These extract the freshly moulded parts from the open mould automatically at the end of each cycle, replacing what would otherwise be a slow, labour-intensive manual process.

Before full production begins, the machine undergoes a trial run. Mould movements are tested. Cycle parameters — injection speed, holding pressure, cooling time, mould temperature — are dialled in. Think of it as a dress rehearsal. Any mechanical interference, short shots, or dimensional deviations are identified and corrected here, not after ten thousand parts have been produced.

Turning Pellets into Parts

With the mould commissioned and parameters locked, production begins in earnest.

But here is something worth pausing on before we go further. A finished lid is not a single moulded piece. What looks like one seamless object in your hand is, in reality, an assembly of multiple individually moulded components — a main body, a flip cover, a hinge pin, a torsion spring, a push button, a locking latch, and more. Each one is moulded separately, cooled, and only brought together at the assembly stage. A straightforward lid might consist of half a dozen parts. A more complex one — with multiple locking mechanisms, silicone seals, or decorative inserts — can require upwards of sixty individual components. That number tends to surprise people. It shouldn’t, but it does.

With that in mind, what the moulding machine is producing at any given moment is not a lid. It is one piece of a lid.

Plastic pellets are fed from the hopper into the machine’s heated barrel, where a rotating screw melts, shears, and homogenises them into a viscous melt — not unlike how a pasta extruder works, though at considerably higher temperatures and pressures. At the right moment, the screw acts as a plunger, injecting the melt into the closed mould cavity at high speed.

The material fills the cavity in fractions of a second. Then it holds under pressure while the cooling system does its work. The mould opens, the robotic arm extracts the part, the mould closes, and the cycle begins again. A typical lid part might cycle in under 30 seconds. Multiply that across a multi-cavity mould running for a full shift, and the volumes add up quickly.

The first few parts off the tool are not sent straight to assembly. They go to a first-article inspection — a thorough dimensional and visual check against the approved sample. Only when the first-article is signed off does the line transition to full production. This gate acts as the last checkpoint before the floodgates open. Missing a problem here means catching it in ten thousand parts instead of ten.

During the production trial run, operators and quality personnel perform ongoing self-inspection and mutual inspection — checking parts at regular intervals for dimensional accuracy, surface defects, flash, warpage, and colour consistency. The process is designed so that problems are caught close to the source, not discovered at final packaging.

Component Assembly

Now, you know a lid is rarely a single moulded piece. Most functional lids — especially those with flip-top mechanisms, push-button releases, or locking features — are assemblies of multiple components. The most complex lid we’ve ever developed contains 65 individual components. To make the lid function properly, every single part must be manufactured separately with high precision, then carefully assembled into one complete working system.

This stage is where the lid truly comes to life. Sub-components such as the main body and the flip cover arrive as individual moulded parts and are brought together at a dedicated assembly station. The process follows a fixed, repeatable sequence — think of it like assembling a mechanical watch, where each tiny component has exactly one place and one orientation it can go.

The typical assembly sequence runs as follows:

1. Part retrieval — The main body and flip cover are collected and presented to the operator or assembly fixture.
2. Torsion spring installation — A small torsion spring is fitted into the flip cover. This spring is what gives the lid its characteristic snap-open action. It stores energy when the lid is closed and releases it the moment the latch is disengaged — a simple mechanism that users interact with hundreds of times without ever thinking about it.
3. Hinge pin insertion — A precision pin is pressed through the aligned hinge bores of the body and the flip cover, creating the pivot axis. The fit between pin and bore is deliberate: too loose and the hinge rattles; too tight and it binds.
4. Button and latch fitment — The push-button and locking latch are installed. These are the functional heart of the lid’s user experience. The geometry of these parts must be exactly right for the mechanism to engage and release cleanly, cycle after cycle.
5. Functional verification — With all components in place, each assembled lid undergoes a 100% functional check. Every unit is opened, closed, and latched by hand. Any lid that fails to click, binds on the hinge, or shows a misaligned button is pulled before it progresses further.

This is the moment of truth. Assembly transforms individual plastic parts into a product with a function — and that function must work flawlessly, every single time.

Quality Control

Quality in lid manufacturing is not a department. It is a discipline woven into every stage of the process.

Several levels of inspection operate simultaneously throughout the production run:

• Operators perform self-checks on their own output.
• Adjacent operators cross-check each other’s work.
• Dedicated quality personnel conduct formal inspections at critical process points.

The result is a layered defence — like concentric rings around a target — where a defect that slips past one level is caught by the next.

Parts that fail inspection at any stage are not simply discarded. They are quarantined, tagged, and subjected to a structured rework or disposition process. Depending on the nature of the defect, parts may be reworked (for example, a flash line trimmed), returned to the moulding machine for re-processing, or scrapped. The key is that non-conforming product never silently advances to the next stage.

At critical process steps — flagged explicitly in the process documentation — additional controls apply. These are the moments where a small deviation can cascade into a significant problem. They receive heightened attention precisely because the cost of failure downstream far outweighs the cost of extra vigilance in the moment.

The next time you flip open the lid of your water bottle, consider what went into that simple action. Somewhere upstream, a batch of resin was dried to the correct moisture content. A steel mould was precisely commissioned and cooled. A torsion spring was fitted by hand into a flip cover. A first-article was inspected and signed off before a single production part was shipped.

Each of those steps is unremarkable on its own. Together, they form a system designed to deliver the same reliable, satisfying click — ten times a day, for years on end.

That is what industrial manufacturing, done well, looks like: invisible, repeatable, and relentlessly consistent. The lid doesn’t call attention to itself. It just works. And that, in manufacturing terms, is the highest compliment there is.
